Hamilton 9045VW Cheriton Georgian Polished Brass 45A Vertical Double Pole Switch and Neon with Red Rocker and White Surround

Click to enlarge

Hamilton 9045VW Cheriton Georgian Polished Brass 45A Vertical Double Pole Switch and Neon with Red Rocker and White Surround

Product Code: 9045VW

Hamilton Cheriton Georgian Polished Brass 45A Vertical Double Pole Switch and Neon with Red Rocker and White Surround

£ 80.47 excl VAT
Unit:


Estimated Lead Time: 3-5 days

Hamilton Cheriton Georgian Polished Brass 45A Vertical Double Pole Switch and Neon with Red Rocker and White Surround

  • Product range: Cheriton Georgian
  • Plate finish: Polished Brass
  • Plate material: Metal
  • Insert: Red Rocker
  • Surround: White Surround
  • Vertical double pole red rocker switch with neon
  • Gangs: 1
  • Current rating: 45 A
  • Voltage: 220/250 V AC
  • Mains frequency: 50 Hz
  • Maximum load: 45 Amps
  • Switched poles: Double
  • Must be mounted vertically

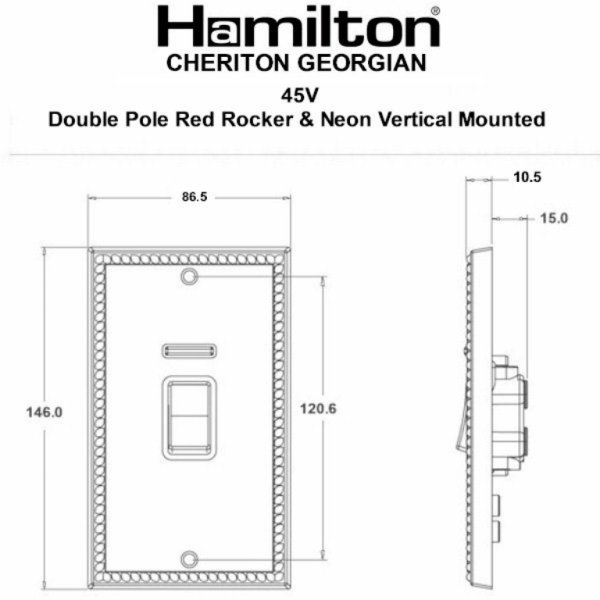

  • Plate size: Double
  • Plate width: 86.5 mm
  • Plate height: 146 mm
  • Plate depth: 10.5 mm
  • Minimum wall box depth: 35 mm
  • Contact gap minimum: 3 mm
  • CE marked
  • IP rating: IP2XD
  • Ambient operating temperature: -5 to +40 °C
  • Internal Use Only
  • Maximum installation altitude: 2,000 m
  • Must be earthed

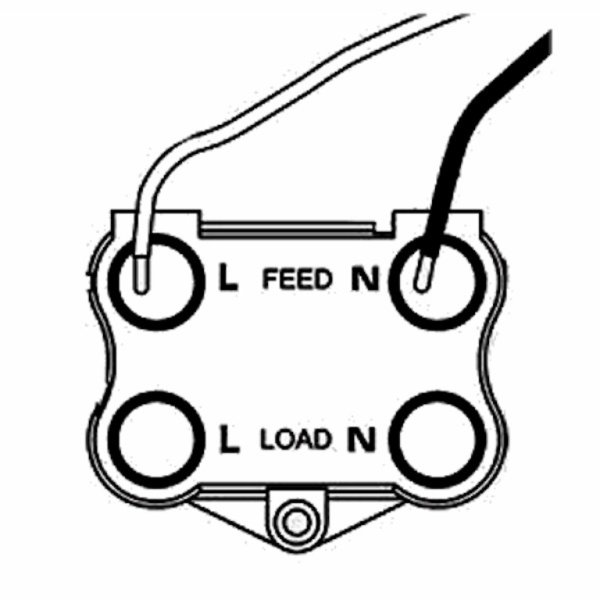

  • Terminal capacity:
    • 3 x 6 mm²
    • 2 x 10 mm²
    • 1 x 16 mm²
  • Earth terminal capacity:
    • 3 x 6 mm²
    • 2 x 10 mm²
    • 1 x 16 mm²
  • BS EN ISO standard(s): BS EN 60669-1
